Ecomulti Compact 5

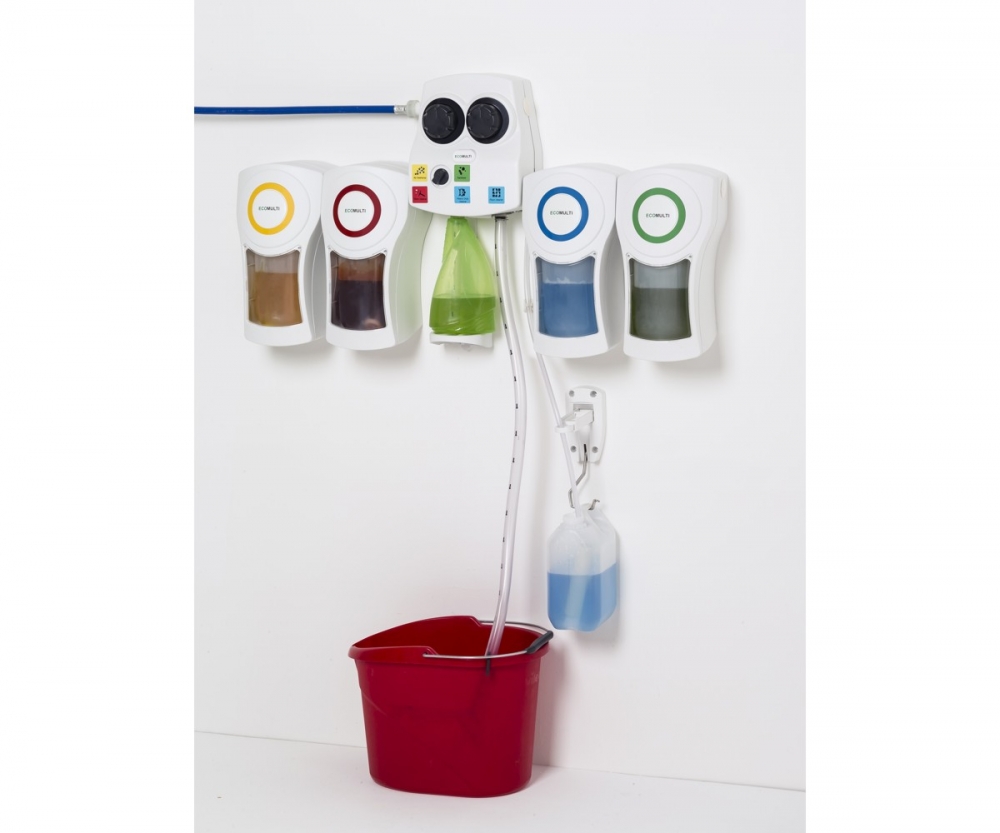

ECOMULTI COMPACT is a proportioner that can dilute up to five chemicals from one dispenser. Connected to the water mains, this chemical dispensing system is suitable for combining low-flow (4L/min) and high-flow (14L/min) applications for use with spray bottles, buckets or scrubber dryers.

Product Information

Water pressure 2 - 5 BAR
Available in 4 l/min
14 l/min
Dilutions 2:1 - 128:1 Low-flow
6:1 - 350:1 High-flow
Temperature 5 - 65 °C

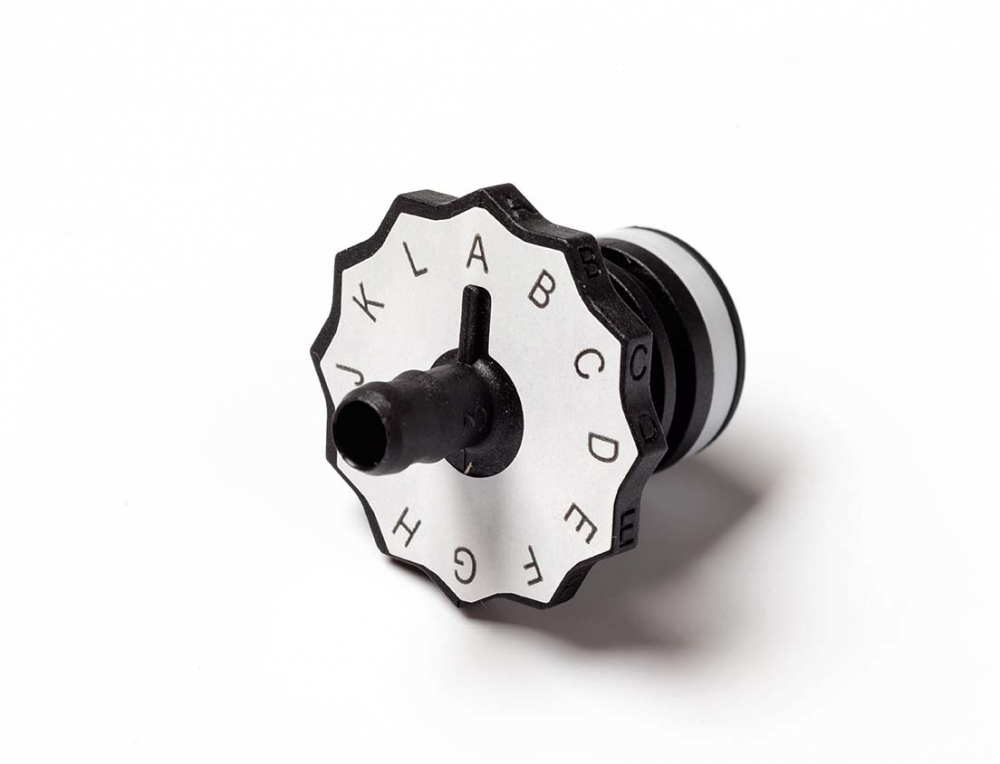

Choose to deliver chemical from a hanging bracket which supports up to 5L containers or consider installing safe and secure chemical cabinets that are suitable for 1.5L pouches and 2L bottles. The pouch system's optional pin positions are ideal for the exclusive distribution of chemicals. Developed using Brightwell Dispensers' patented dilution technology, the revolutionary wheel design replaces the need for metering tips and allows installers to select up to 13 specific dilution ratios per chemical.

ECOMULTI COMPACT comes with colour-coded, multi-lingual pictograms as standard in sets of blue, red, yellow, green and transparent to promote safe cleaning practice and aid easy identification of chemical concentrates.

Features

  • Ideal for combining low flow (4L/min) and high flow (14L/min) applications
  • Easier installation with built-in spirit level and a multitude of mounting holes
  • Flexible design enables chemical to be delivered from side or bottom inlets
  • Patented dilution technology offering precise dilution ratios

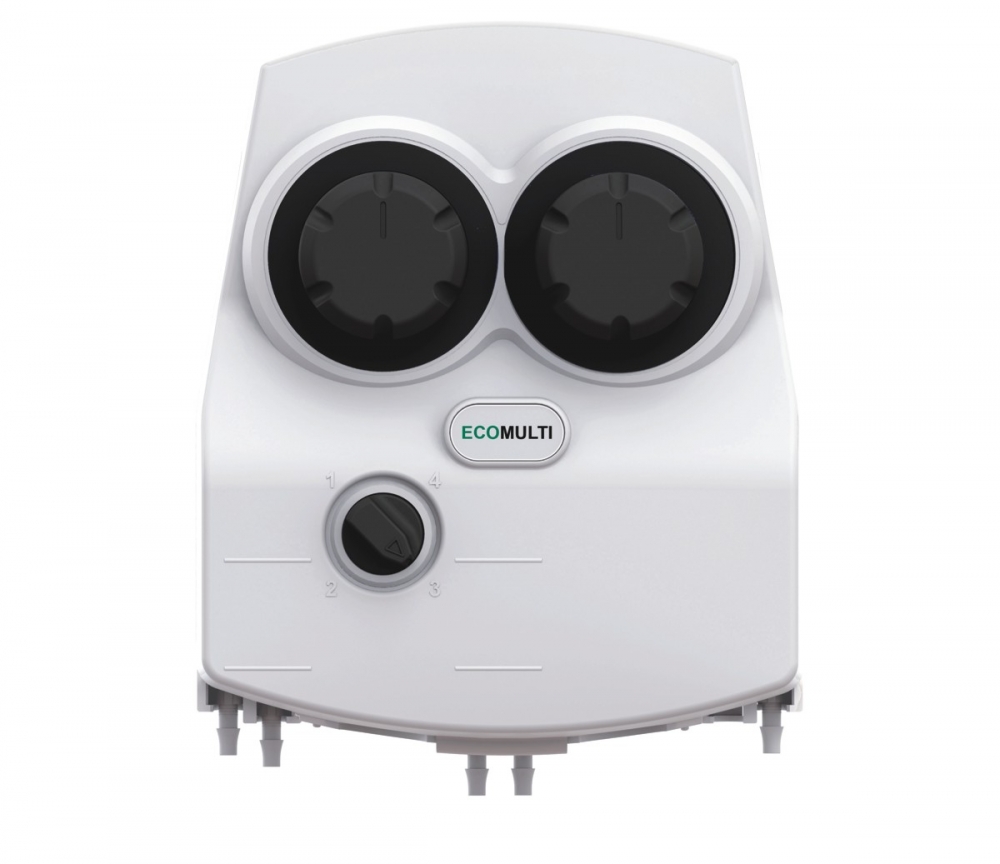

  • Intuitive 4 dial product selector with haptic click to avoid chemical selection error
  • Colour-coded pictograms to aid identification of correct cleaning chemical and use
  • Optional hanging brackets available to keep chemicals off-the-floor
  • Safe and secure chemical cabinet available for 1.5L pouch &  2L bottle
  • Chemical exclusivity option for pouch system
  • Unit and cabinet rings available in various colours
  • Branding available
