Ecomulti 4

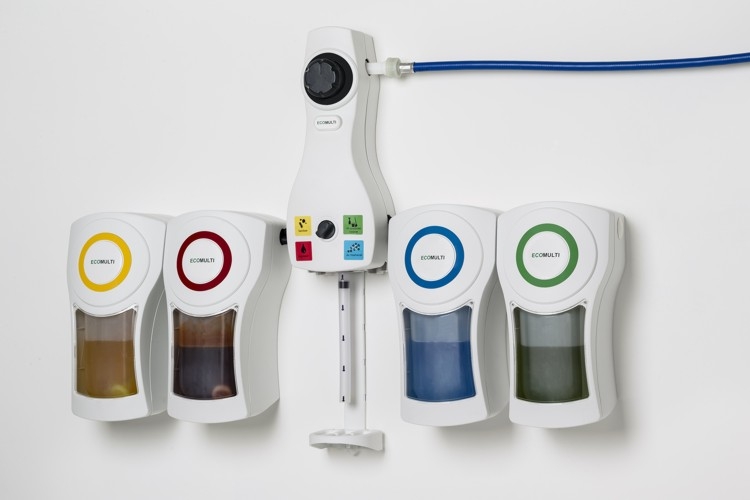

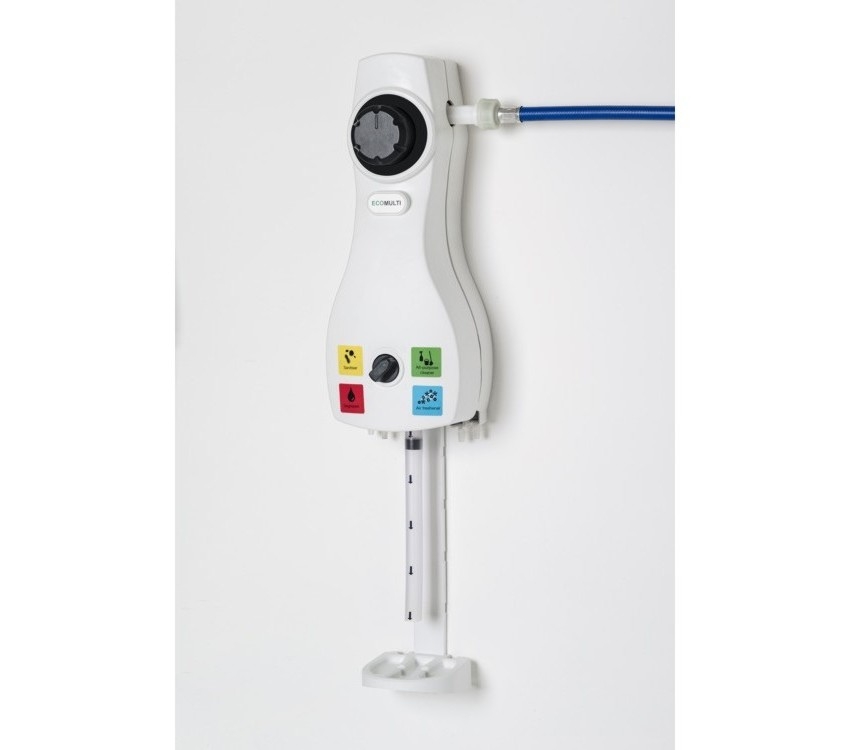

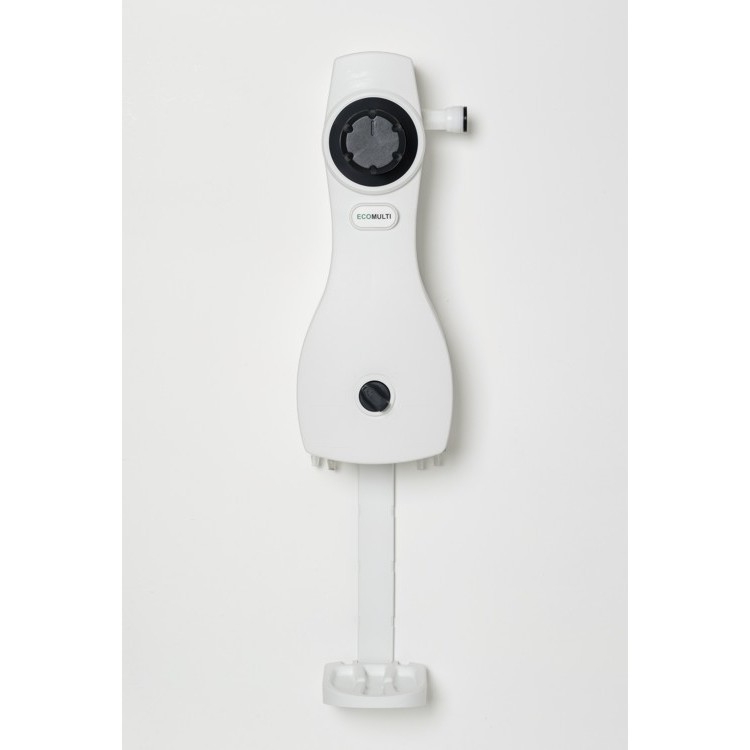

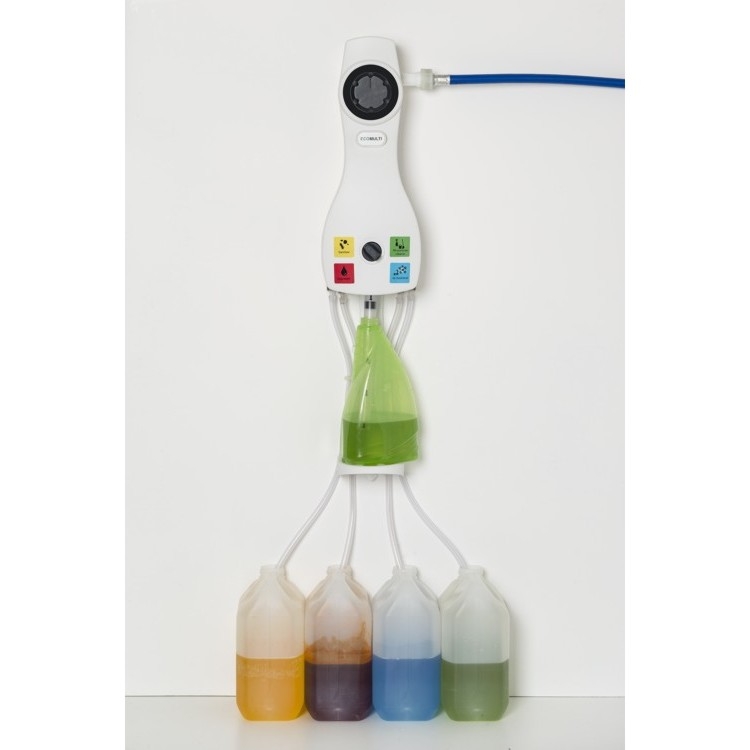

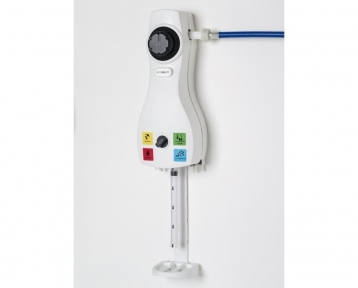

ECOMULTI STANDARD is a proportioner that can dilute up to four chemicals from one dispenser. Connected to a water mains, the flexible design makes these one-stop chemical dispensing stations the ideal solution for even the smallest cleaning environments. It is available in low-flow (4L/min) and high-flow (14L/min) versions.

Product Information

Water pressure 2 - 5 BAR
Available in

4 l/min
14 l/min

Dilutions 2:1 - 128:1 Low-flow
6:1 - 350:1 High-flow
Temperature 5 - 65 °C

As with all proportioners in the ECO RANGE, ECOMULTI STANDARD is designed using Brightwell Dispensers' patented dilution pin enabling installers to select up to 13 independent dilution ratios per chemical.
WRAS approved ECOMULTI STANDARD includes a Type DB backflow prevention device is designed in accordance with European Standard EN1717.


  • 2 versions: Low-flow (4L/min) and High-flow (14L/min)
  • Flexible configuration enabling chemical concentrates to be conveniently delivered from side or bottom inlets
  • Patented dilution technology offering precise dilution ratios
  • Intuitive 4 dial product selector with haptic click to avoid chemical selection error
  • Ease of Installation: Drilling templates, built-in spirit level, multitude of mounting holes
  • Colour-coded pictograms to aid identification of correct cleaning chemical and use
  • Safe and secure chemical cabinet available for 1.5L pouch &  2L bottle
  • Chemical exclusivity option for pouch system
  • Unit and cabinet rings available in various colours
  • Branding available
