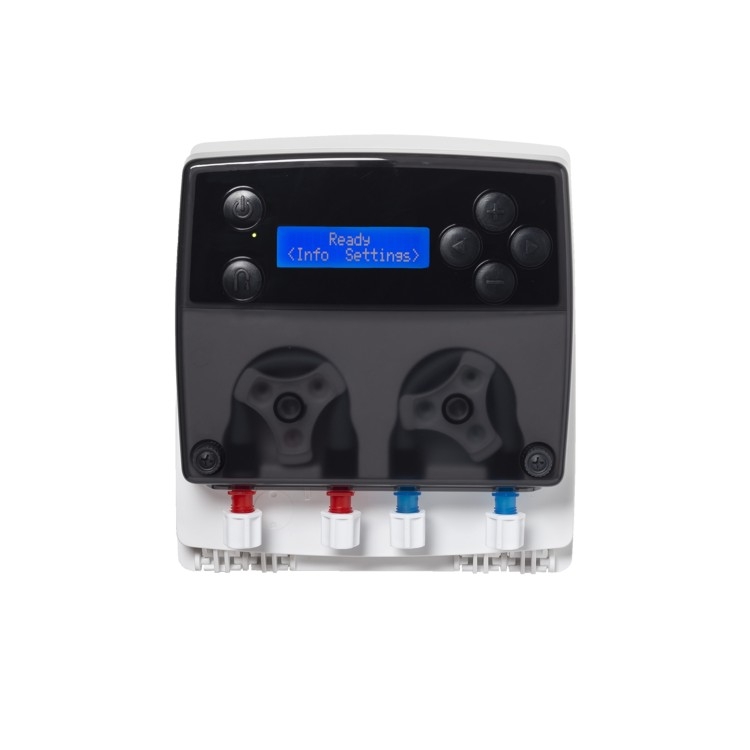

Quantura 200

The Quantura 200 is Brightwell Dispensers’ new peristaltic pump dosing system for dosing dishwash detergent and rinse aid into a wide variety of commercial dishwashers including conveyor/flight, hood and door type dishwashing machines.

Product Information

Power Supply 100 V - 240V AC
Signals 24V to 240V (AC or DC), opto-isolated
Flowrate Detergent: 15ml/min to 260 ml/min
Rinse aid: 1.5ml/min to 30ml/min
Sanitiser: 6ml/min to 160ml/min
Motor Brushless 24V DC
Dosing 2 - 3 products
Settings Probe Mode, Probeless Hood Mode, Probeless Tunnel Mode

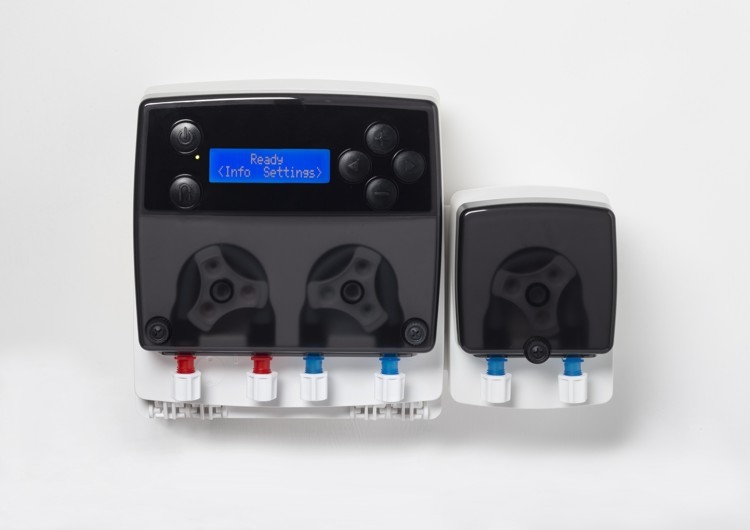

This system also provides the option to incorporate an additional, third peristaltic pump for dosing sanitiser.


• Easy installation and set-up
• One system for Probe Mode, Probeless Hood Mode, Probeless Tunnel Mode
• High-quality brushless DC motors
• Pump status lights and on/off indication light
• Super low flow rates
• Full text LCD in nine different languages
• Secure Access Code Option

• Professional, modern design
• Modular design allows an easy conversion from a two to a three pump system

• High-efficiency brushless DC motors
• Special Pulsing Technology to achieve super low flow rates
• One single quick release cover to provide access to pump heads
• Water resistant, durable polypropylene enclosure
• High performance polymers offering durability, impact resistance and safety
• Optional conductive probe attachment

• Easy-to-use, intuitive programming
• Micro-processor controlled dosing
• Pump status lights to show operational states such as pump running and maintenance requirements
• Easy-to-read, full text, modern LCD
• Access codes for security
• De-lime capability

• Easy-to-clean, hygienic, robust front cover with water-tight, durable rubber buttons
• Pre-wired to speed up installation time
• Wall bracket mounting with integrated spirit level
• Detailed manual and drilling template
