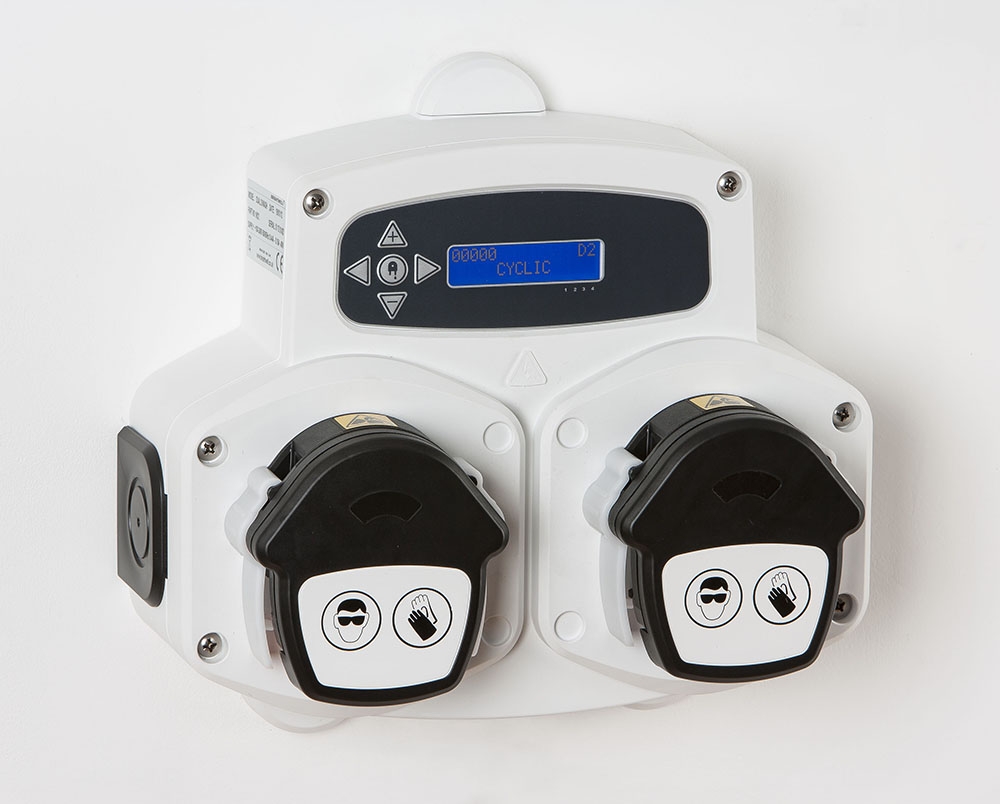

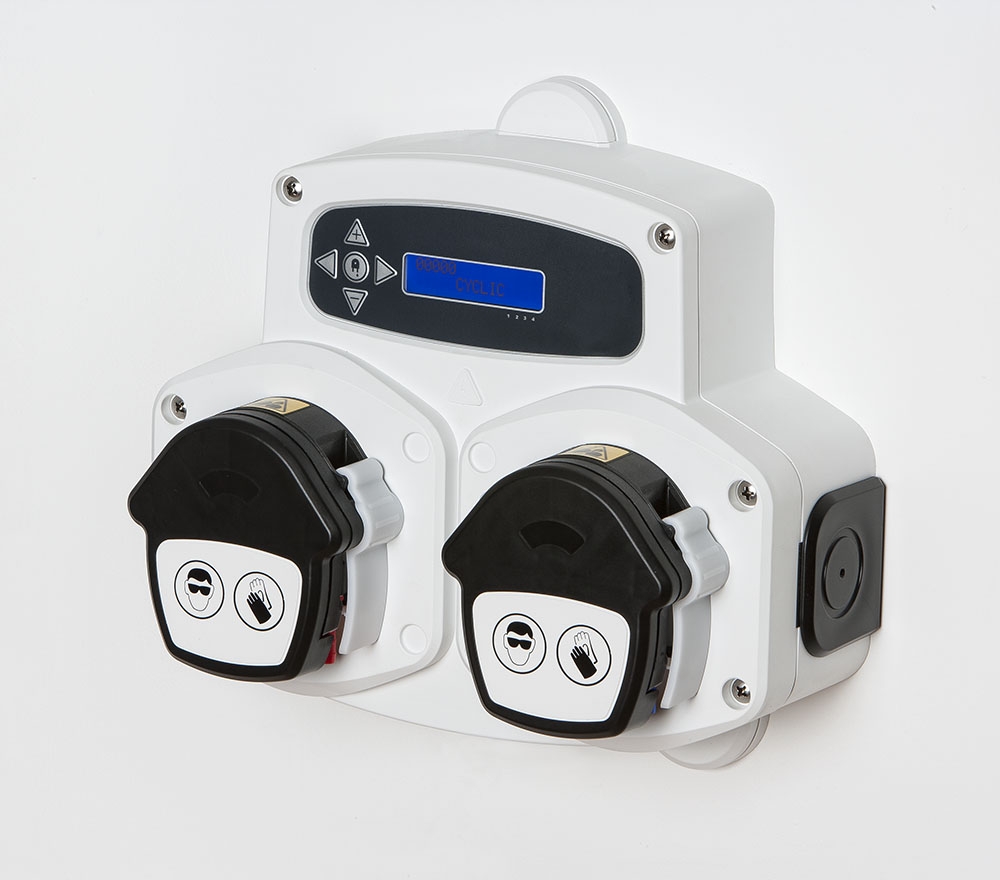

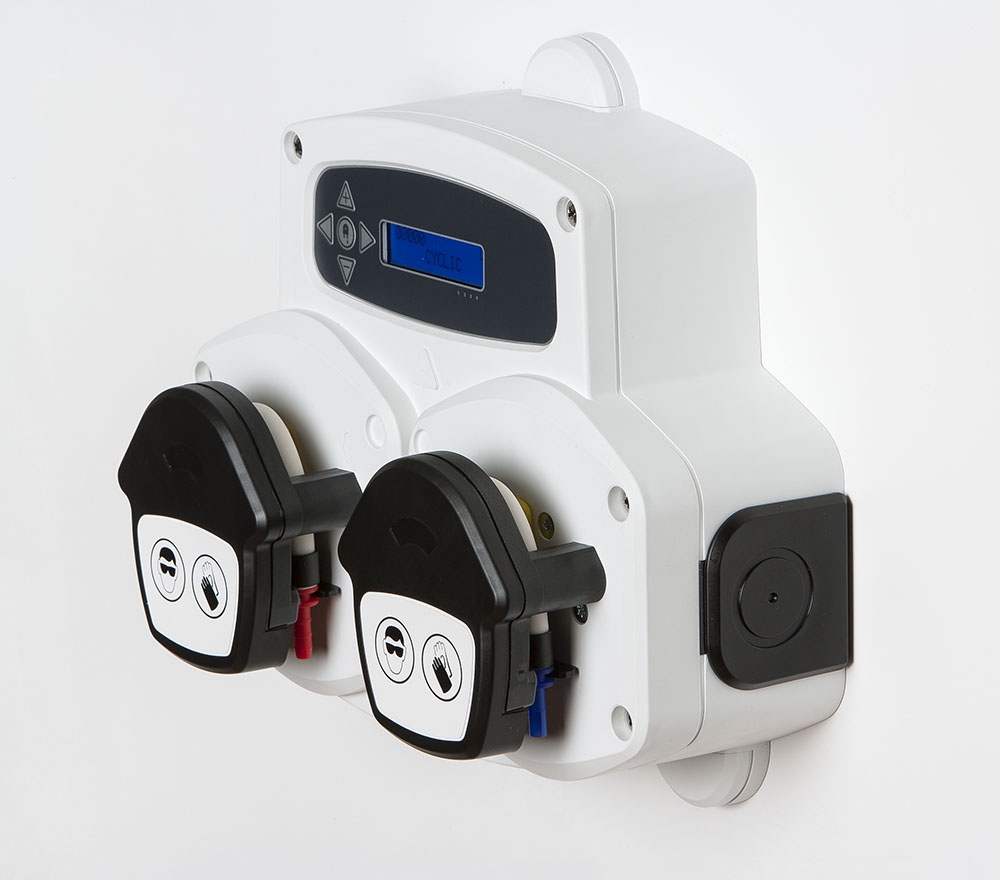

BrightLogic D2

For tunnel or conveyor dishwashers.

Product Information

Power Supply 100 V - 240V AC
Signals 12-240V AC/DC
Flowrate 6mm BrightChem
(max. 285ml/min, min. 38ml/min)
3mm BrightChem
(max. 35ml/min, min. 3,5ml/min)
Motor Brushless - 24V DC, 600mA
Dosing 2 products (Two single Pumpheads), option to connect 3 pump
Settings Time / Conductivity / Cyclic
More information
multilanguage menu, protection by access code, quick setup mode, dosing statistics, possibility to connect measuring probe, pulse test screen
Video - Prime and pump stop feature

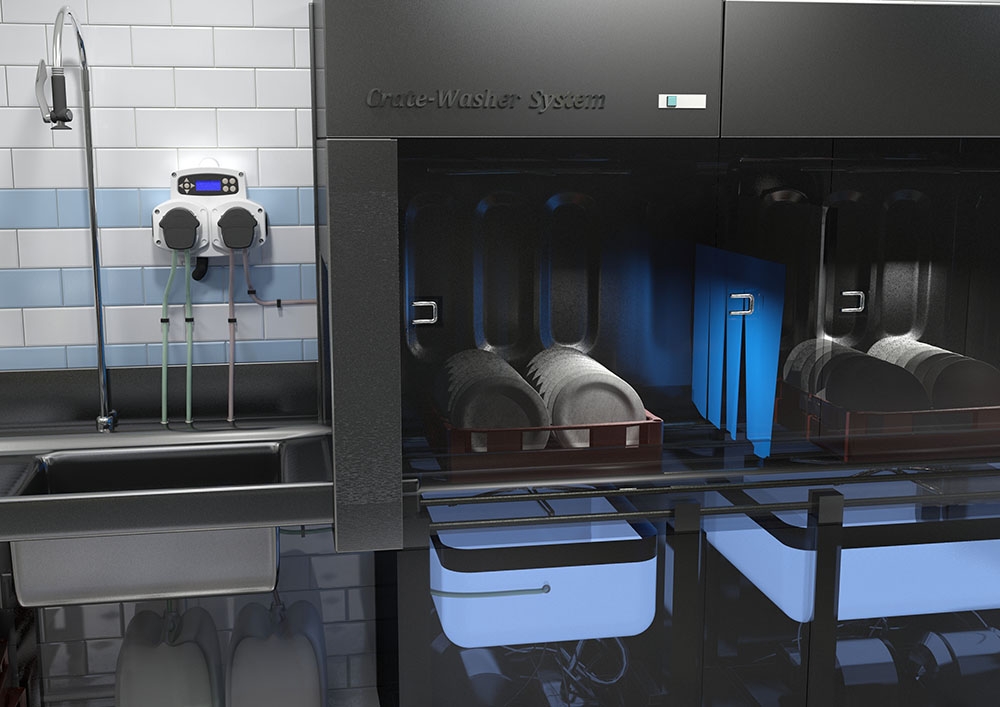

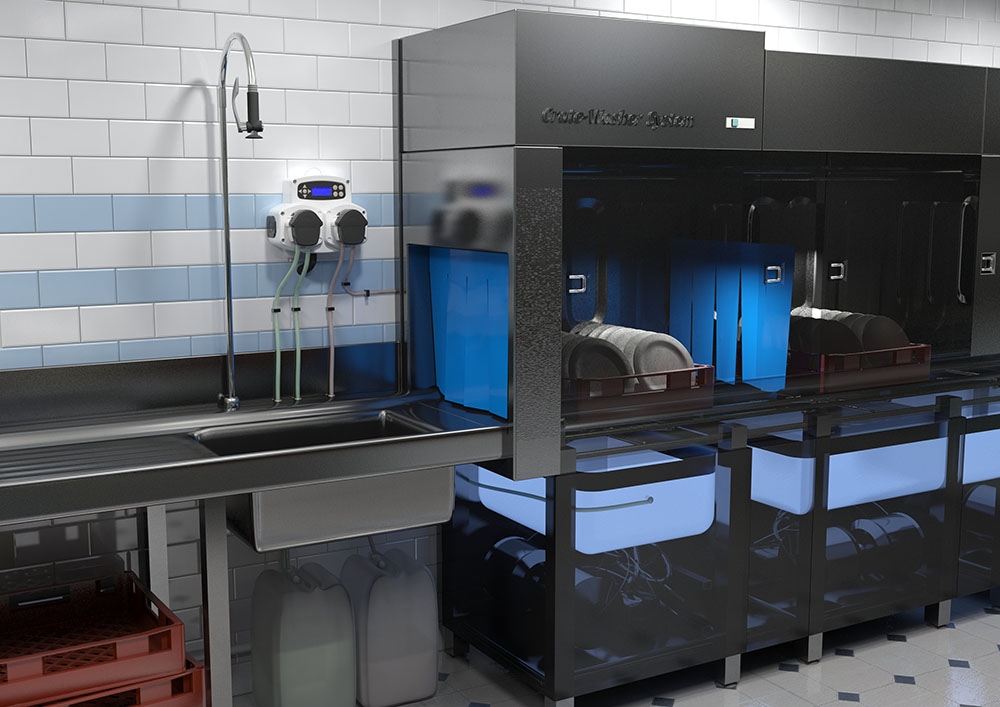

For tunnel, conveyor or Flight machines, choose the new BrightLogic D2 - part of the new BrightLogic series of highly durable, easy-to-use dispensers.

Like the D1, the D2 can automatically dose two products, only the D2 can do it simultaneously with consistent flow rates.

  • Suitable for tunnel, conveyor or Flight machines
  • Add-on pump available, for use of a sanitiser
  • Solenoid version available for connection to a powder hopper
  • Run in cyclic mode with inductive, or conductive probes
  • Run in timed/signal mode for single tank machines
  • The ability to disable prime and pump stop facility
  • Engineers test screen that shows if signals are connected
  • A variety of tube materials and tube connectors available for this unit to best suit your installation
