For dosing two products into single-tank and single-cycle dishwashers.
Product Information
| Power Supply | 100 V - 240V AC |
|---|---|
| Signals | 12-240V AC/DC |
| Flowrate | 6mm BrightChem (max. 285ml/min, min. 38ml/min) 3mm BrightChem (max. 80ml/min, min. 10ml/min) |
| Motor | Brushless - 24V DC, 600mA |

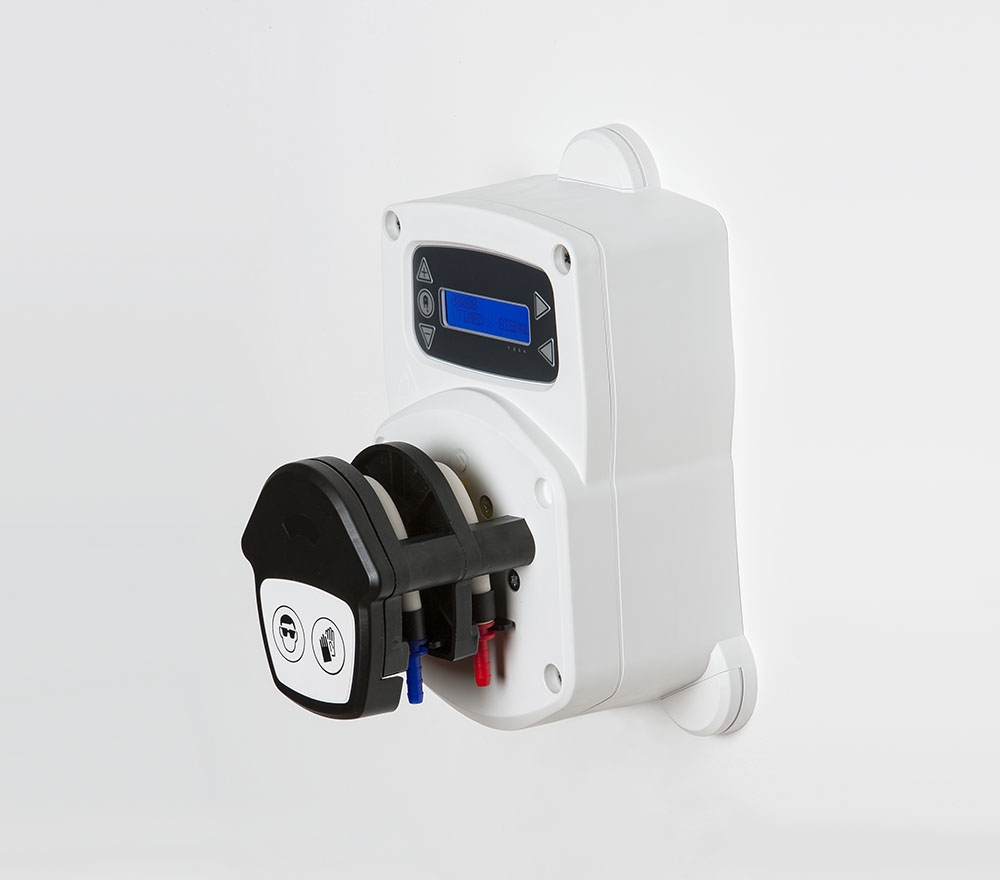

| Dosing | 2 products (Double Pumphead) |
| Settings | Time / Conductivity / Cyclic |
| More information multilanguage menu, protection by access code, quick setup mode, dosing statistics, possibility to connect measuring probe, pulse test screen |
|
| Video - Prime and pump stop feature | |

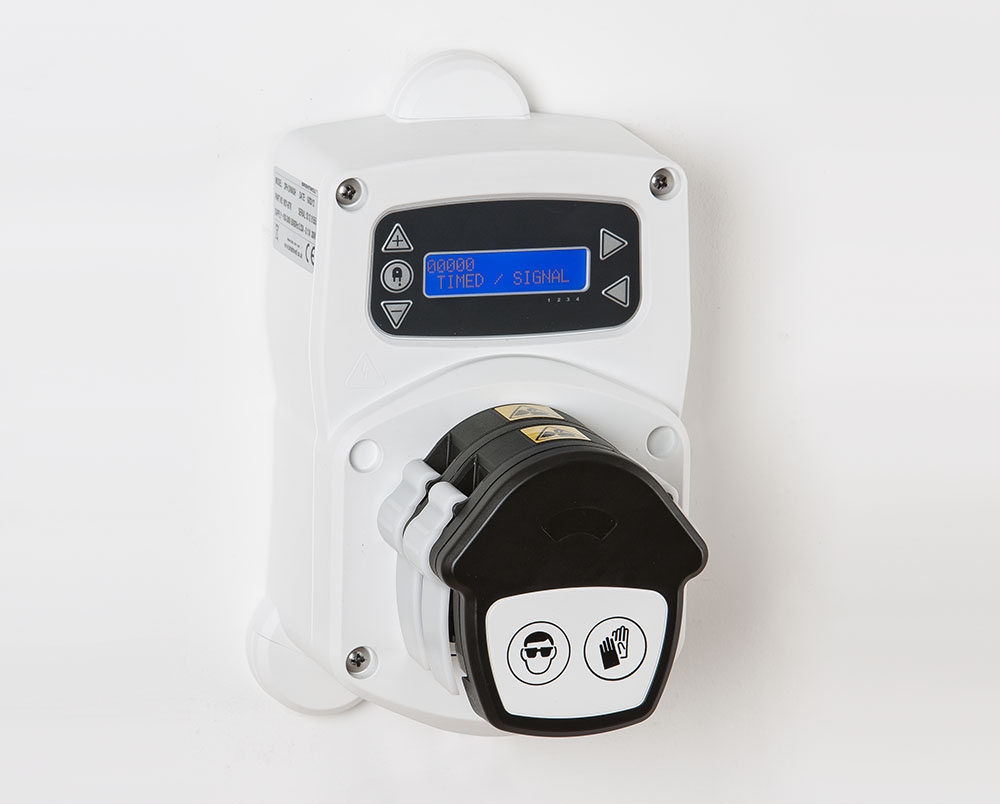

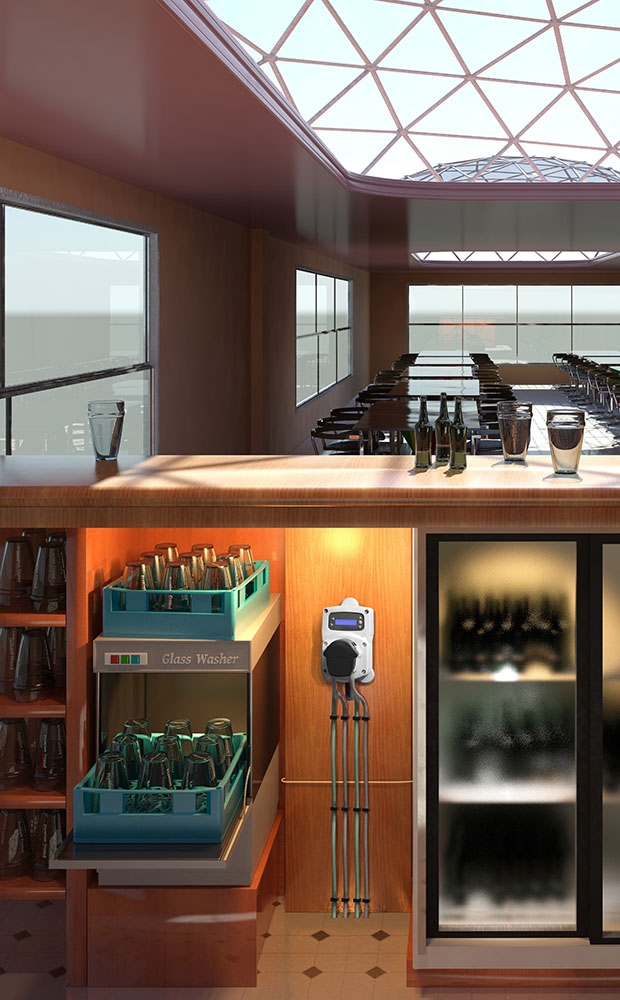

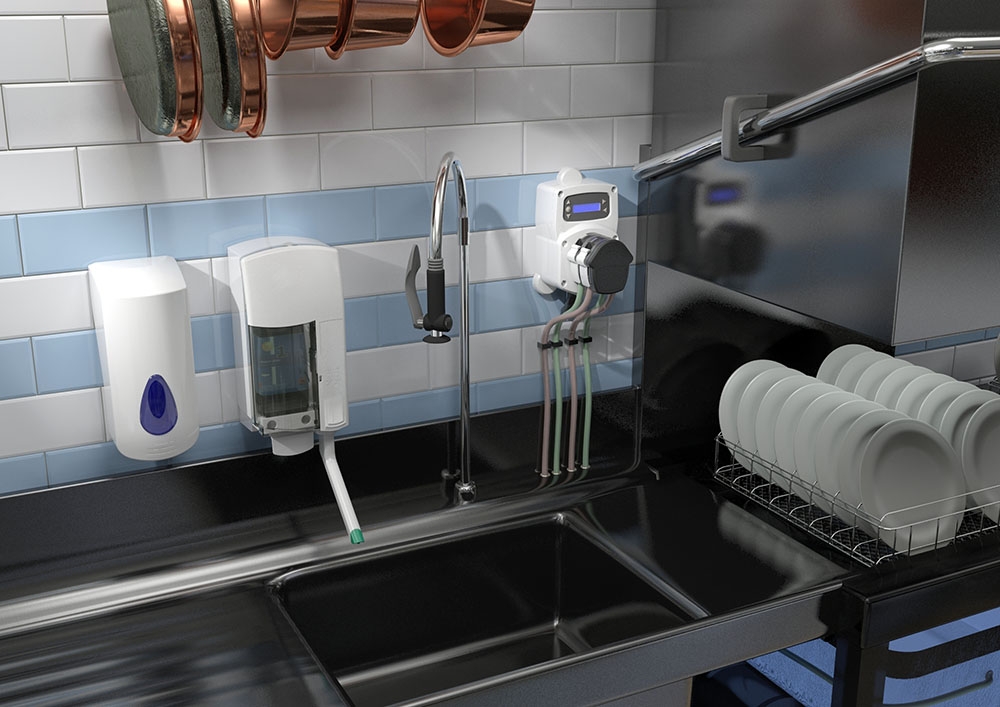

For dosing two products into single-tank and single-cycle dishwashers, including under-counter washers and small glass washers, choose the new BrightLogic D1.
- Suitable for single tank, single cycle dishwashers
- New quick-set-up feature means the D1 can be installed in minutes

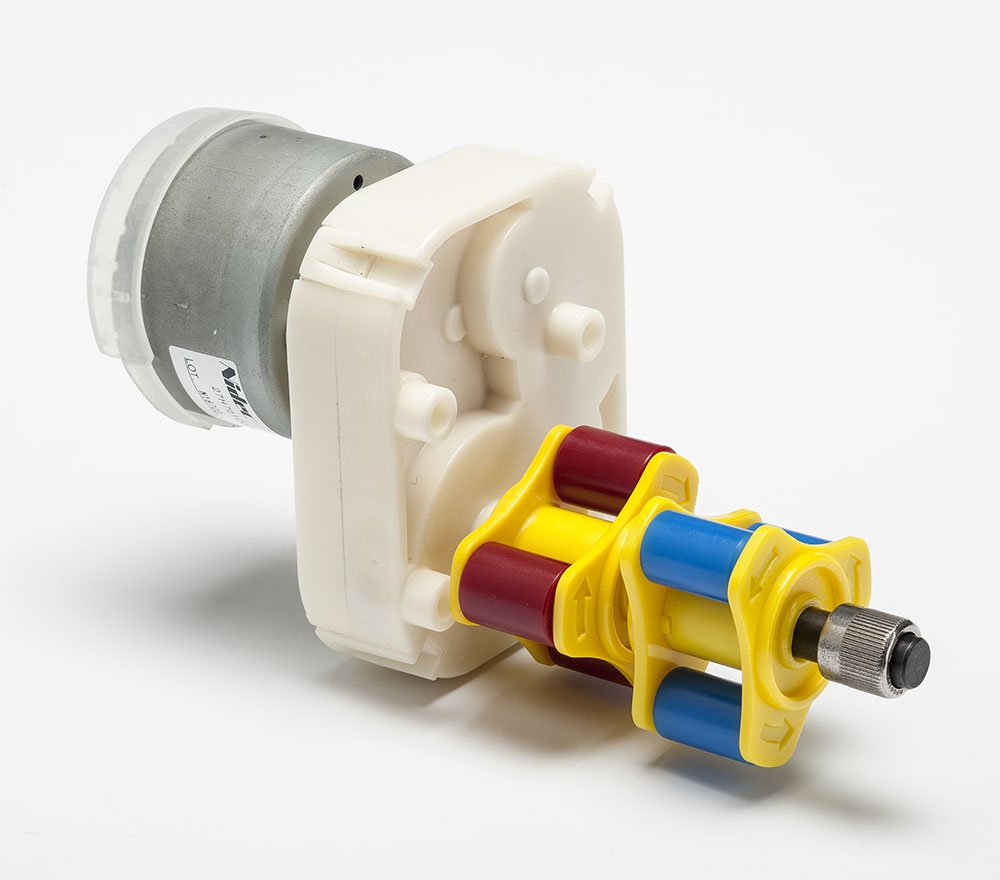

- Brushless motors ensure maximum return on your investment
- Ability to disable prime and pump stop facility
- Engineers test screen that shows if signals are connected
- A variety of tube materials and tube connectors available for this unit to best suit your installation
