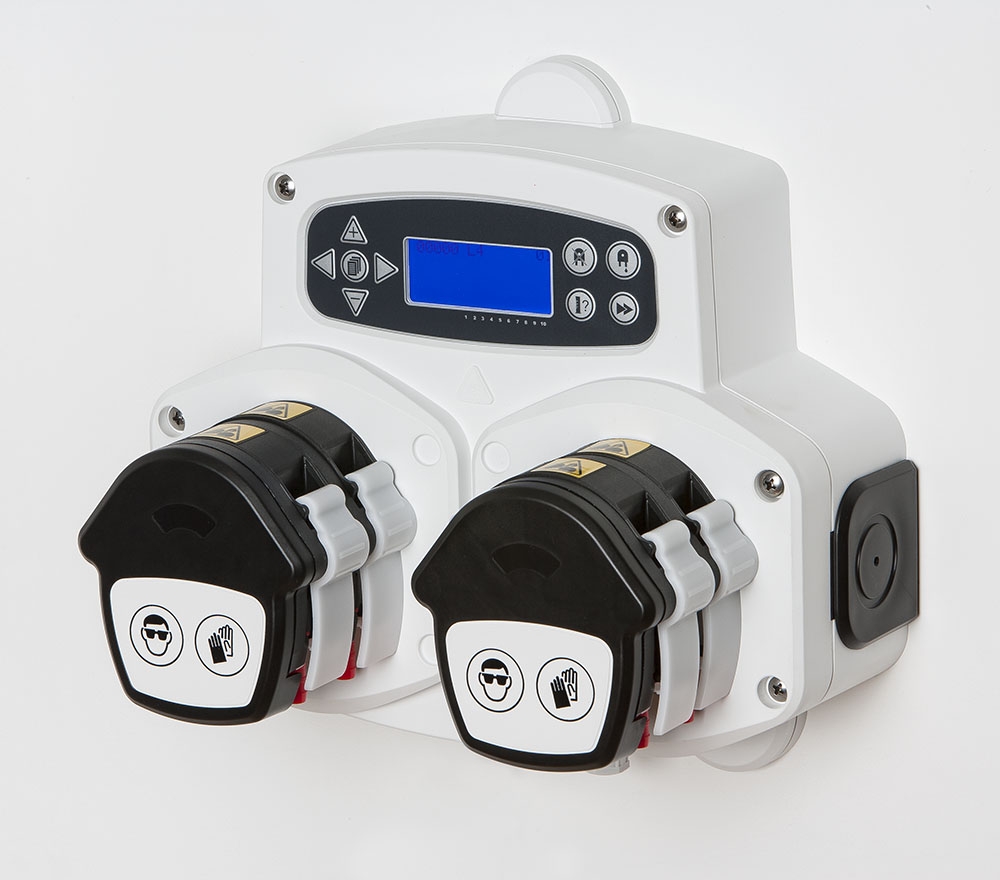

BrightLogic Laundry Systems

BrightLogic is such a flexible system that it is ideal for small on-premises laundries and large industrial operations alike.

Product Information

Power Supply 100 V - 240V AC
Signals 12-240V AC/DC
Flowrate 6mm BrightChem
(max. 285ml/min, min. 70ml/min)
10mm BrightChem
(max. 870ml/min, min. 285ml/min)
Motor Brushless - 24V DC, 600mA
Dosing till 10 products
More information
multilanguage menu, protection by access code, 20 programs, programming on a computer, wireless communication with PC, dosage setting in ml, dosing statistics in ml with export to MS Excel, pulse test screen
Video - Engineers test screen

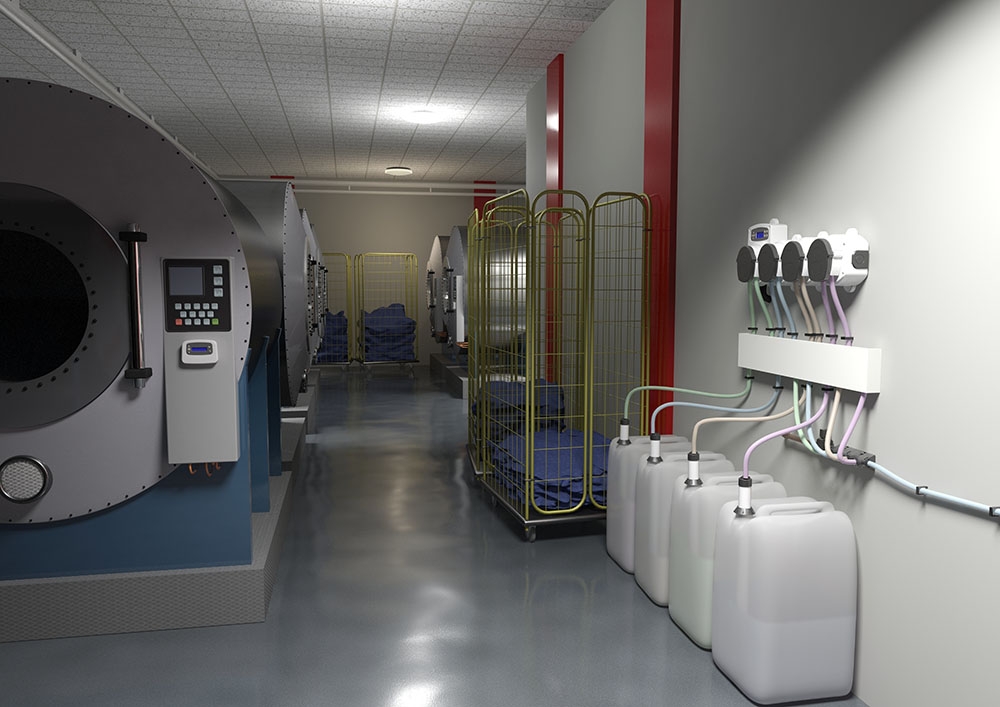

BrightLogic is such a flexible system that it is ideal for small on-premises laundries and large industrial operations alike.

OPL version suitable for a wash load of up to 35kg

Highflow version suitable for wash load of between 35kg and 100kg

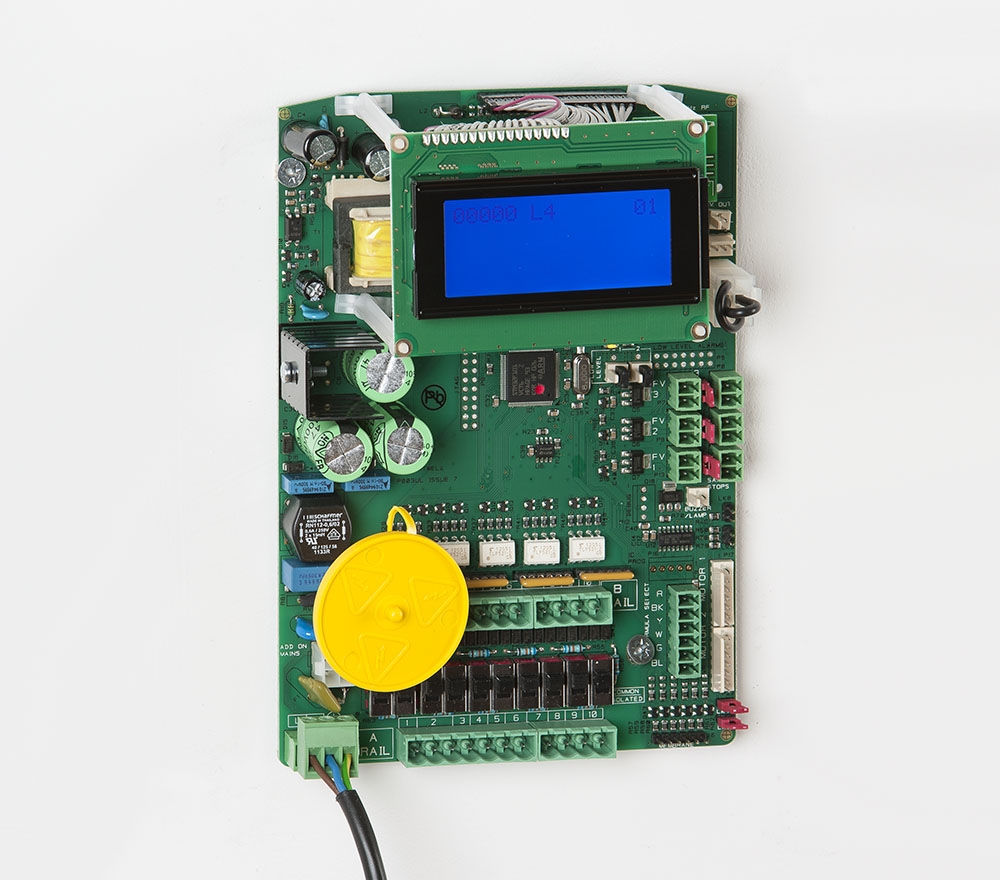

Hardware features

  • Three manifold outputs as standard to safely filter chemical types
  • Opto isolated switches
  • Protected output transistors
  • Brushless motors
  • Resetable fuse
  • Wireless USB comms
  • Configure any combination 1 - 10 pumps
  • Full speed control on all pumps
  • Independently CE and UL approved

Software features

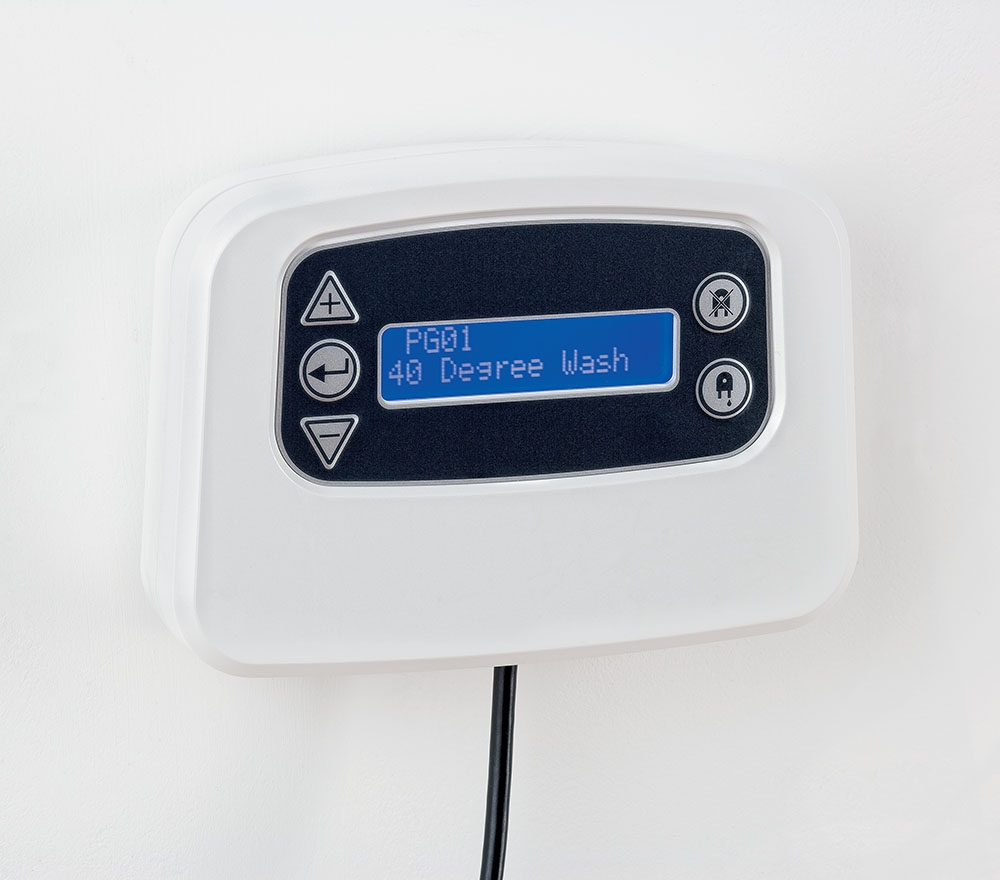

  • Programme formula select with wash cycle names
  • Bespoke access codes and screen text
  • Twenty programmes as standard
  • Free programming software
  • Relay mode setting
