BrightLogic Pump Modules

BrightLogic power and run pump modules, offer you the capability to pump chemical between 70ml and 875ml per minute. Simply apply a power source to the pump to operate it. Two links on the PCB allow you to switch between time control and speed control.

Product Information

Power Supply 100 V - 240V AC
Flowrate 6mm BrightChem
(max. 285ml/min, min. 70ml/min)
10mm BrightChem
(max. 870ml/min, min. 285ml/min)
Motor Brushless - 24V DC, 600mA
Settings Time / Speed

BrightLogic power and run pump modules, offer you the capability to pump chemical between 70ml and 875ml per minute. Simply apply a power source to the pump to operate it. Two links on the PCB allow you to switch between time control and speed control.

Speed mode allows you to adjust the speed of the pump using a digital potentiometer to increase or decrease the flow of product.

Timed mode uses a digital potentiometer to adjust the time the pump runs (between 5 sec - 3mins), once power is supplied.

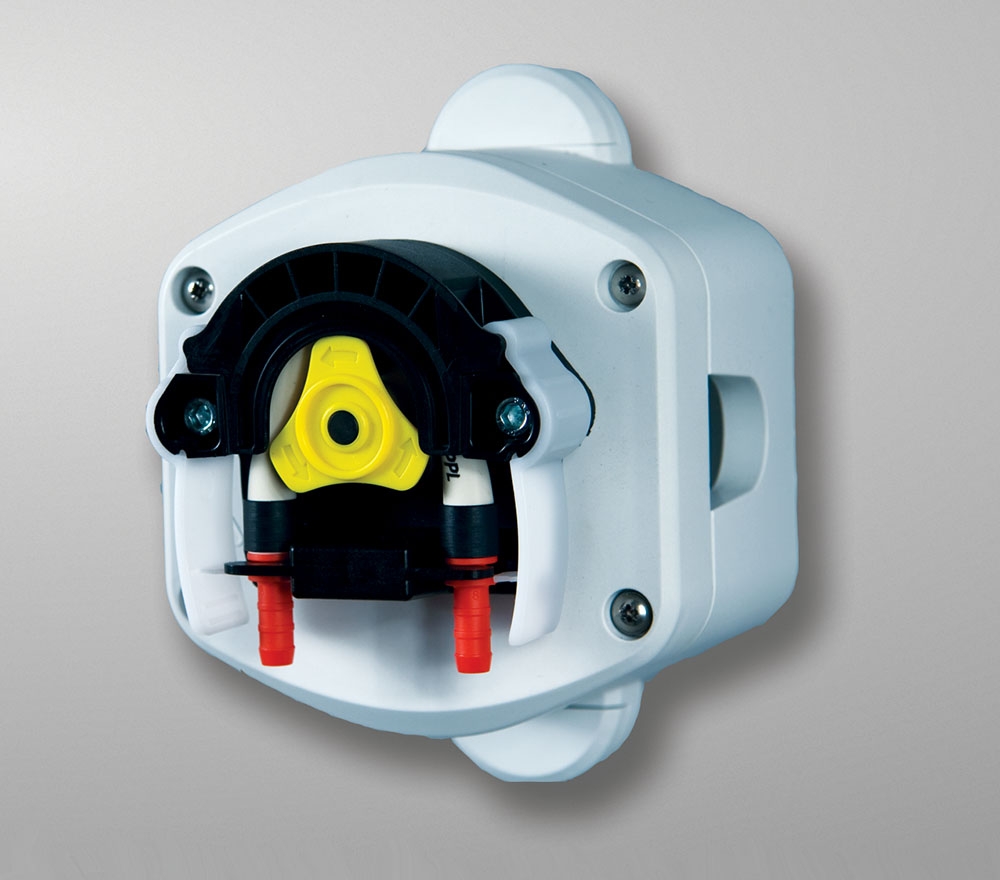

The pump modules use the super strong BrightChem tubing, A co-extruded tube with a very high level of chemical compatibility. They also feature the highly efficient brushless motors providing superb durability.

Brightwell also supply low level chemical alarm systems with the same style and performance.
