BrightLogic Membrane Pump

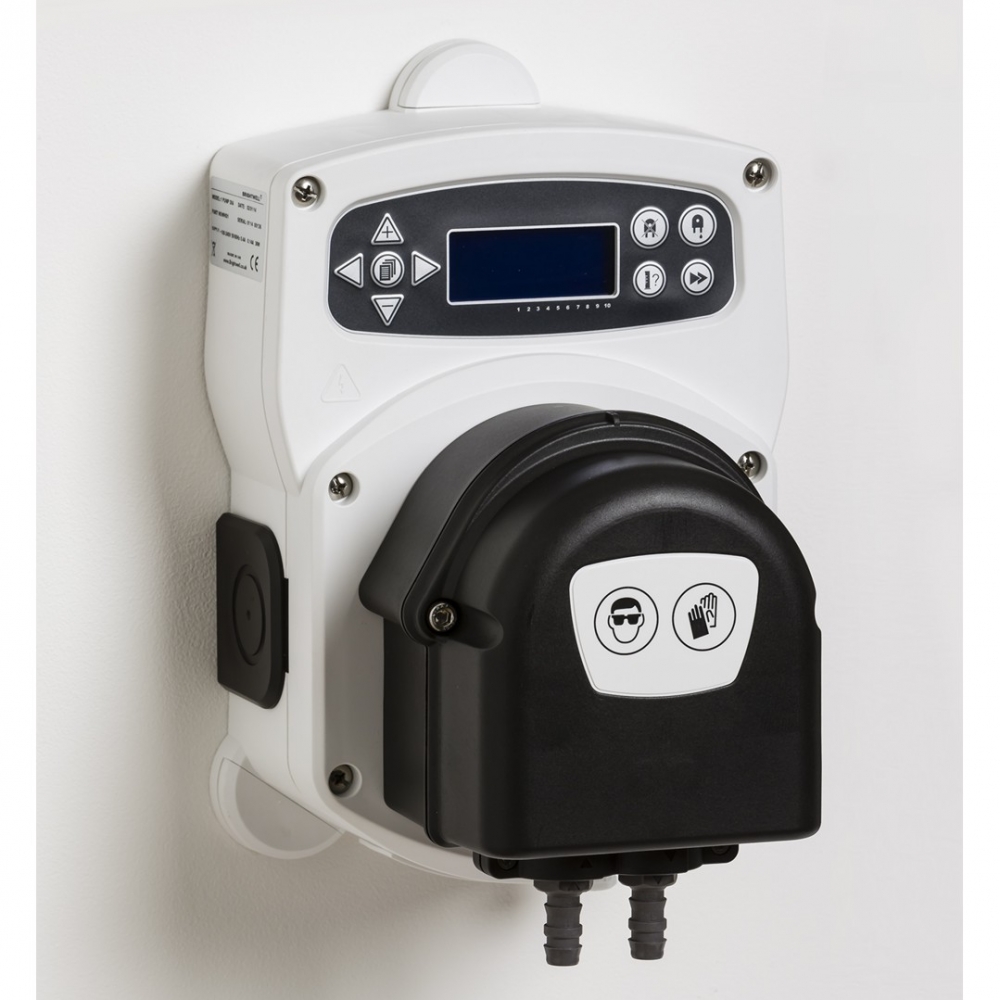

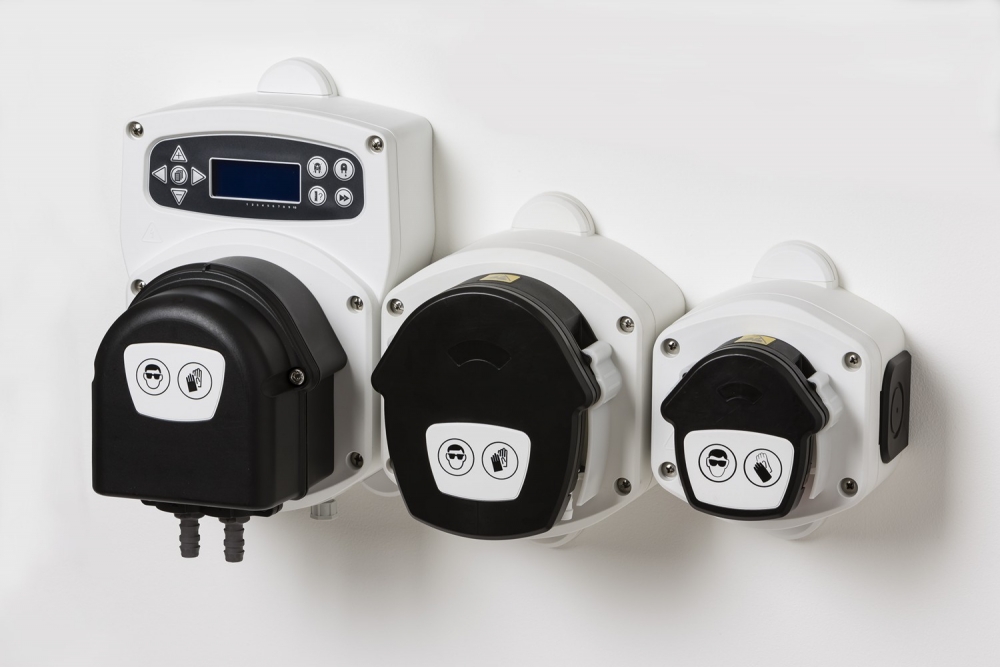

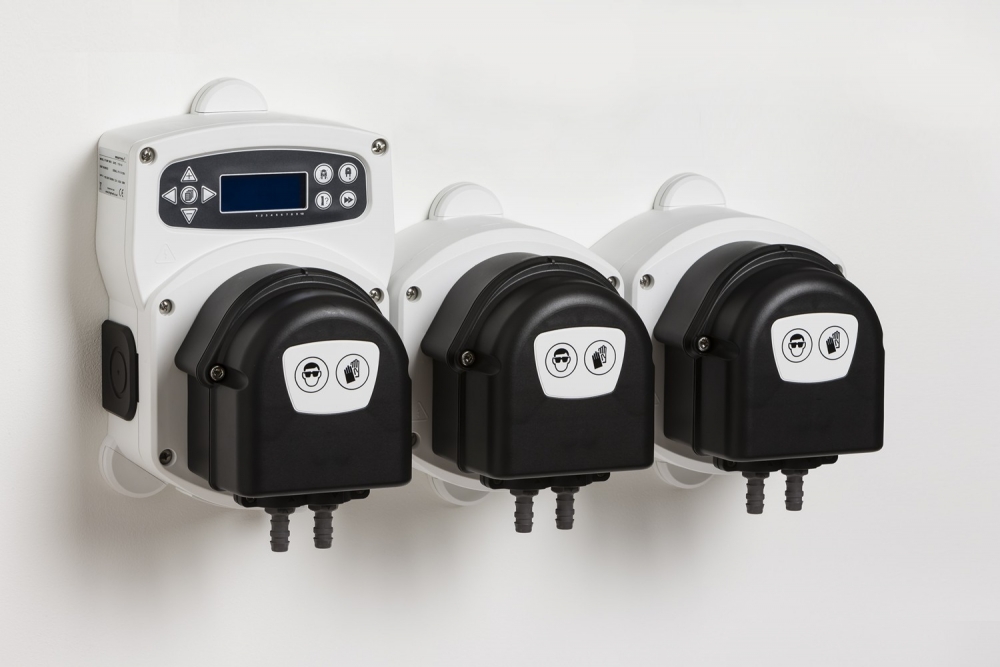

The new BrightLogic membrane pump has been designed to deliver excellent flowrate consistency, even with highly viscous products. Sharing all of the tried and tested components of the established BrightLogic peristaltic pump range, the membrane pump allows for an easy upgrade, with the opportunity to mix and match up to 10 pumps for a truly versatile chemical dosing system.

Product Information

Power Supply 100 V - 240V AC
Signals 12-240V AC/DC
Max flow rate 1.5 L/min (water)
1.25 L/min (viscous product)
Motor Brushless - 24V DC, 600mA
Dosing till 10 products
Materials Valve:
Viton
Extreme Viton
EPDM
Connection 10mm Tube
3/8 BSP female thread
Compatibility BrightLogic Laundry range
IP rating IP45
  • Excellent suction characteristics, even with viscous products – up to 1.5L/min flow rate (water).  Our laboratory tests demonstrate our pumps’ constant flow rate of up to 1.25L/min with viscous chemicals (240cps)
  • Excellent flow rate consistency, even with thicker chemicals

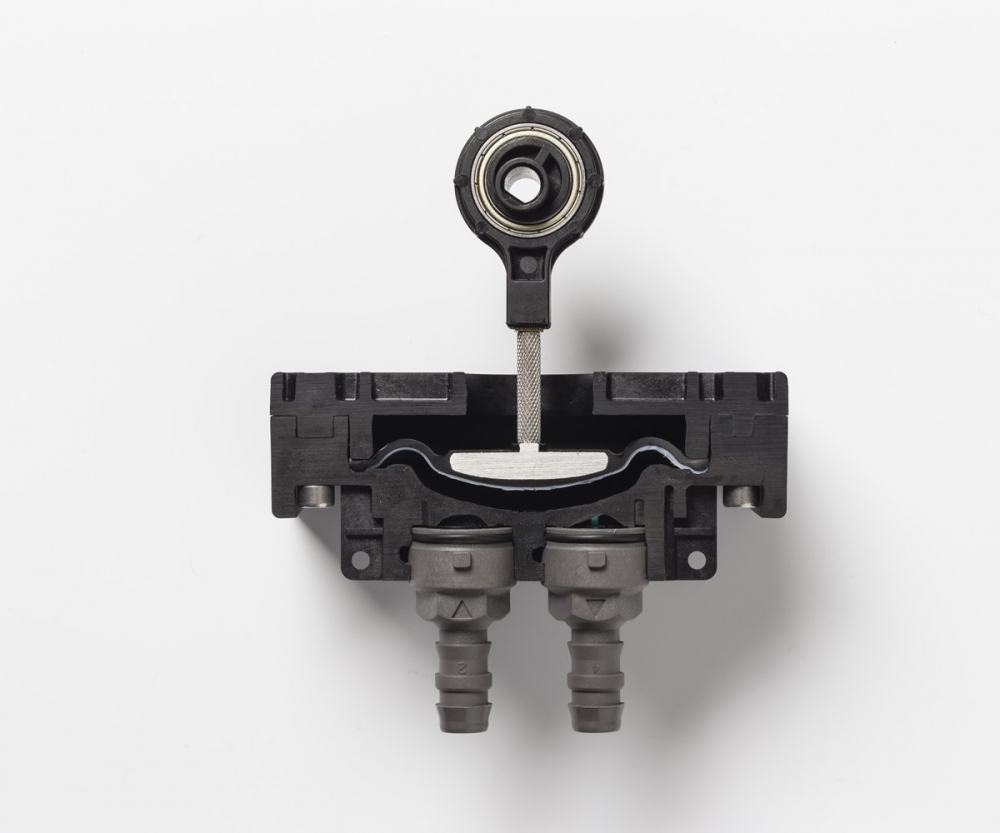

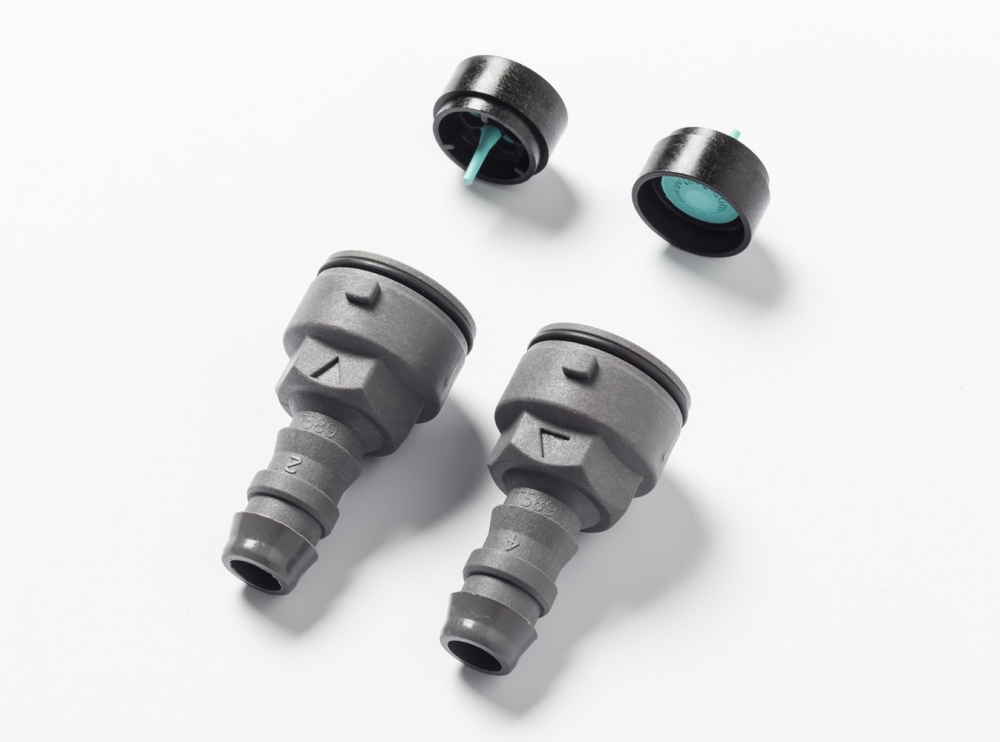

  • Completely self-priming – With the press of a button, the large membrane will generate a strong suction to draw in chemical, and the smart system of asymmetric umbrella valves will create a seal that maintains a head of pressure in the inlet tube and chamber.  Our units present good dry-running characteristics, which means that the membrane has  good resistance to wear during the priming time or should chemicals run out.
  • Limited maintenance – no pump tube changes saves cost

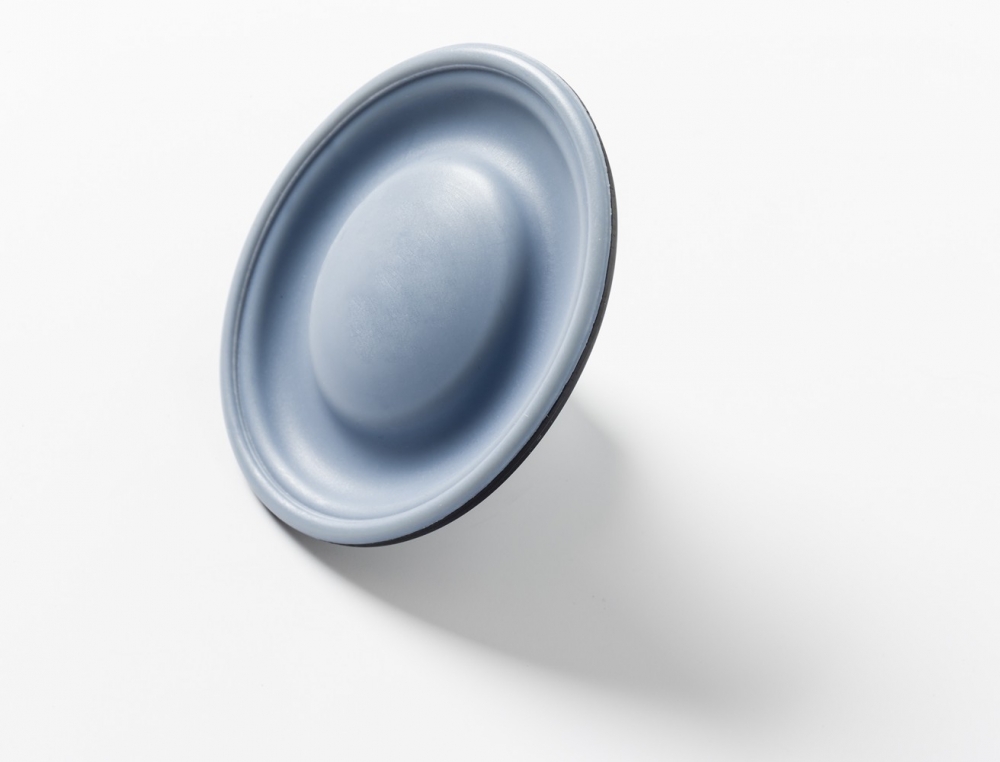

  • Chemical resistance – Specific choice of materials to allow the use of the most aggressive chemicals, including a derivative of PTFE for the membrane and umbrella valves in extreme Viton
