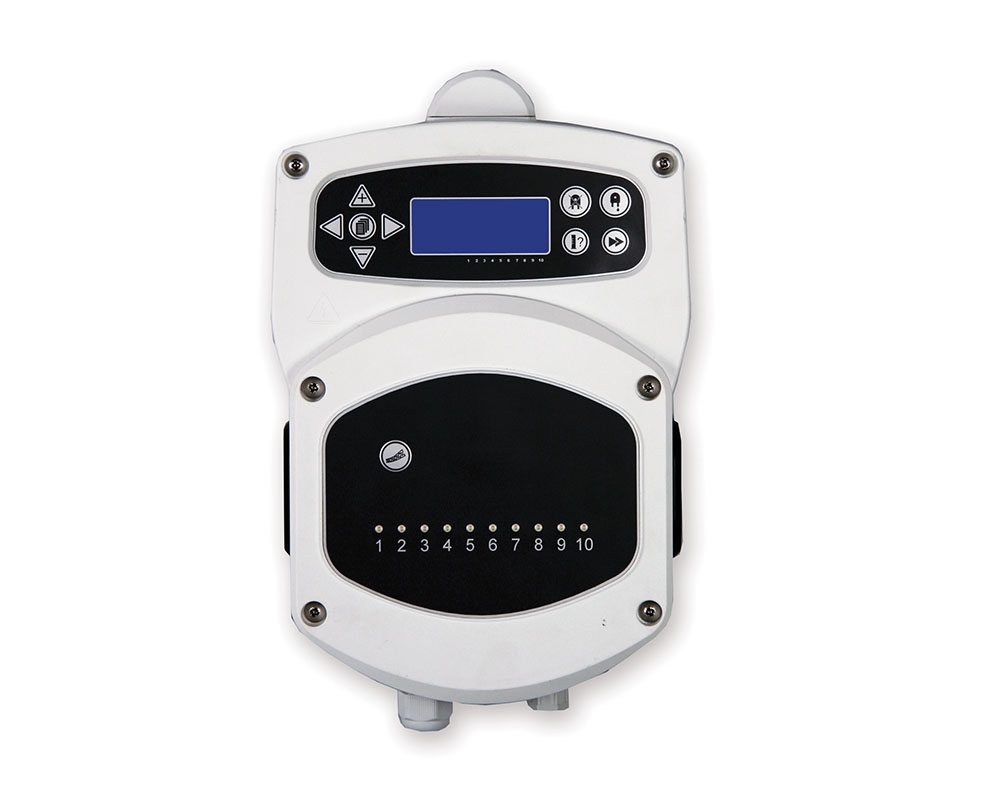

10 Pump Controller

This new 10 pump controller utilises all the same functions as the BrightLogic laundry range including, the computer programming software, back lit display and stylish enclosure.

Product Information

Power Supply 100 V - 240V AC
Signals 12-240V AC/DC
Outputs 10x relay
More information
integrated low level alarm for 10 products

This controller has a 10-off, fused relay output board and a volt-free supply which allows you to run the voltage motors you require (24V, 110V, 230V). All the motors must be the same voltage and draw a maximum of 1A per motor.

The controller will also run a mixture of OEM, and BrightLogic pumps, (maximum of 10) allowing you to create the perfect installation.

An integral 10 channel alarm, with 10 lamps and snooze button which features a variable repeat alarm delay, is included as standard and the low level/safety alarms are integrated together.

A volt-free alarm output is available for when a greater load than 24V, 500mA is required, or for alternative voltage outputs.
