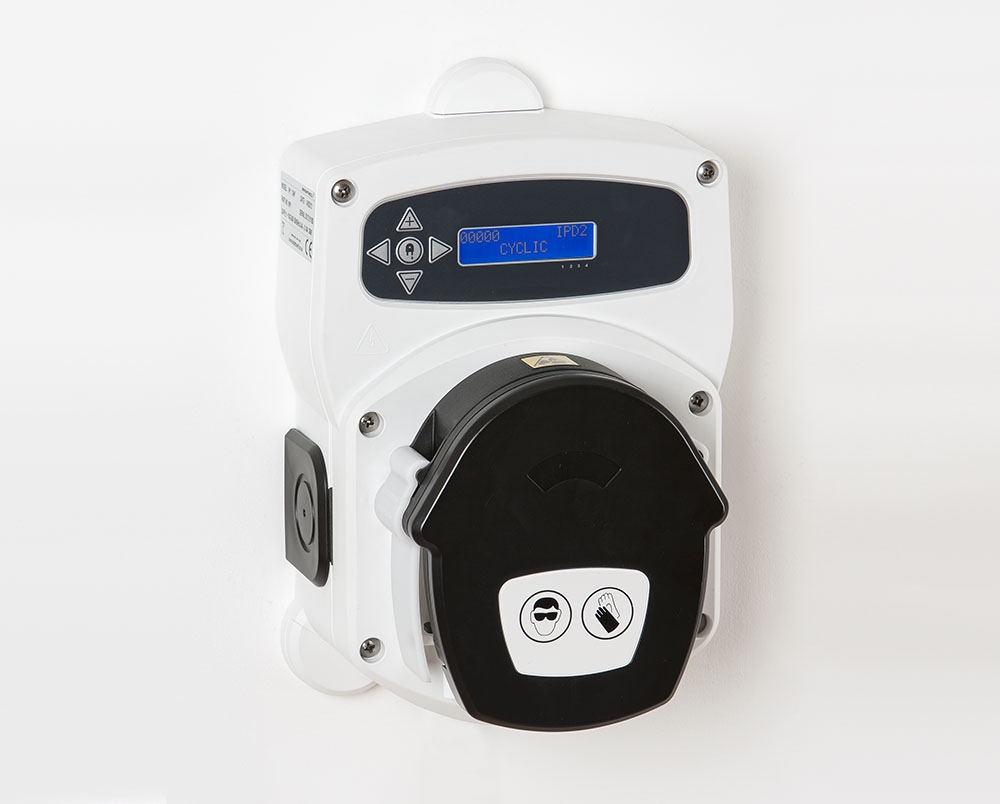

BrightLogic IP

BrightLogic Industrial process dosing.

Product Information

Power Supply 100 V - 240V AC
Signals 12-240V AC/DC
Flowrate 10mm BrightChem
(max. 870ml/min, min. 285ml/min)
3mm BrightChem
(max. 35ml/min, min. 3,5ml/min)
Motor Brushless - 24V DC, 600mA
Dosing 1-3 products
Settings Time / Conductivity / Cyclic
More information
multilanguage menu, protection by access code, quick setup mode, dosing statistics, possibility to connect measuring probe, pulse test screen
Video - Prime and pump stop feature

Ideal for crate or bottle washing the industrial process range from Brightwell brings you all the features from the D1 and D2 with a higher flow rate.

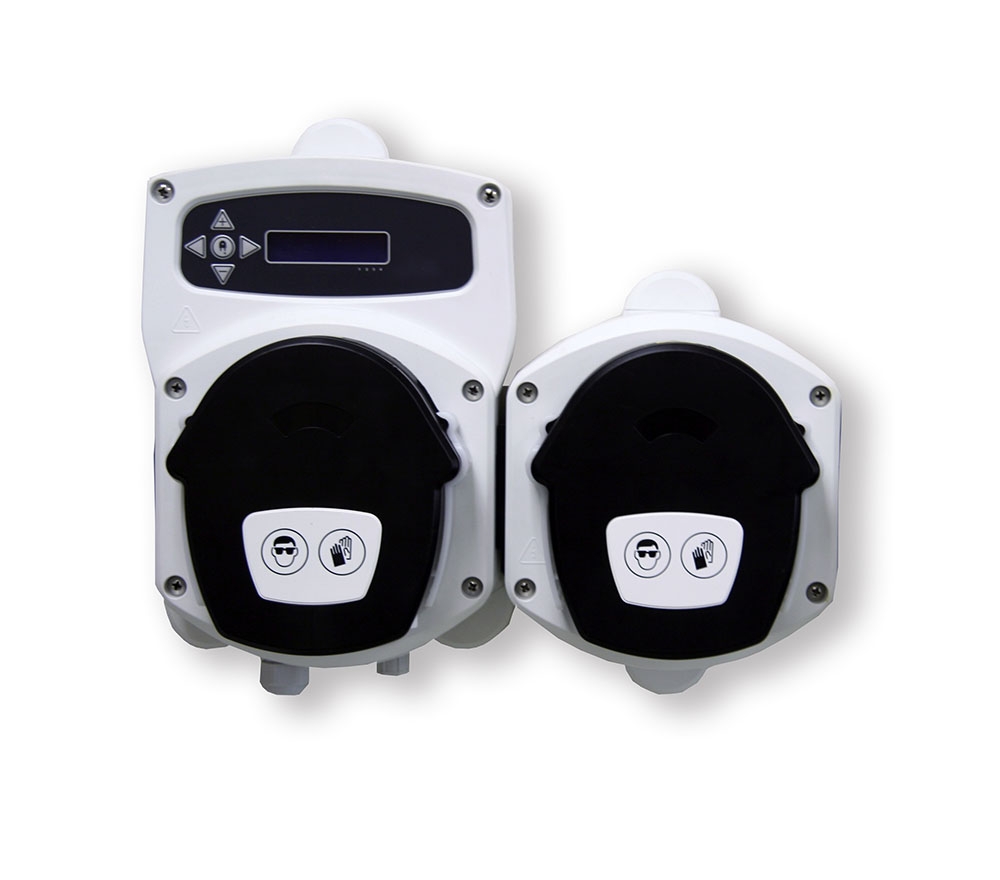

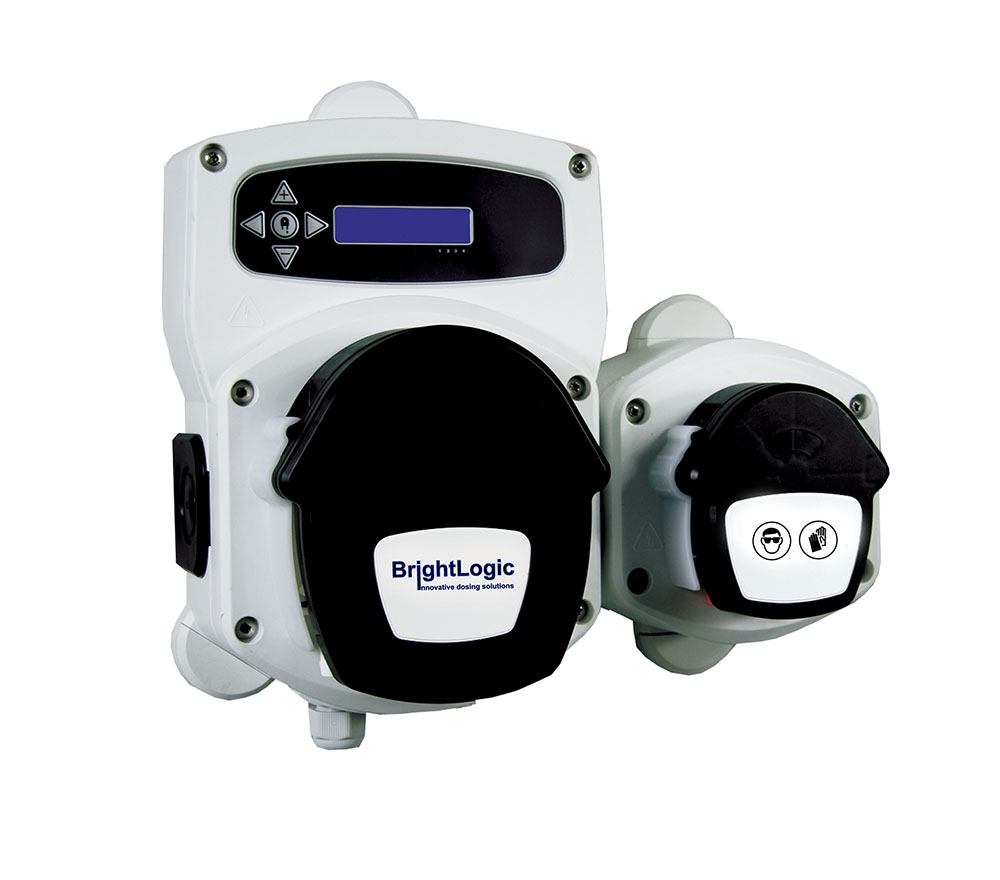

You can choose a combination highflow or low flow pumps up to a maximum of 3. The first pump is always a highflow pump.

  • Brushless motors ensure maximum return on your investment
  • Turn off prime and pump stop facility
  • Engineers test screen that shows if signals are connected
  • Volt free switch contacts

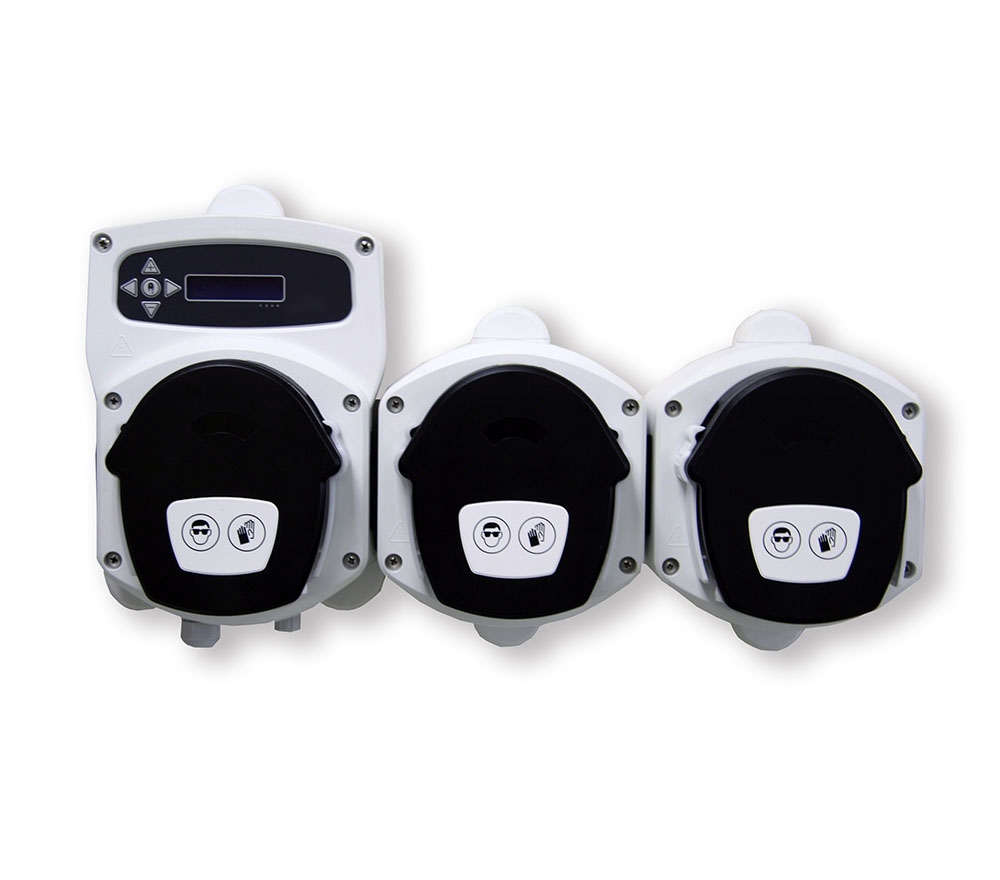

  • With a maximum of three pumps you can mix and match the pump sizes to suit your application
  • The IPD series can be used with both the inductive conductivity probe and capacitive coupled probe.
